Bottle-Matic II

Bottle-Matic-II 2 Label labeler/applicator

From Dispensa-Matic (Since 1974)

LOOK NEW LOW PRICE! (Double Label)

(Not the cheap imported knock off)

MADE IN USA | 3 Year Warranty!

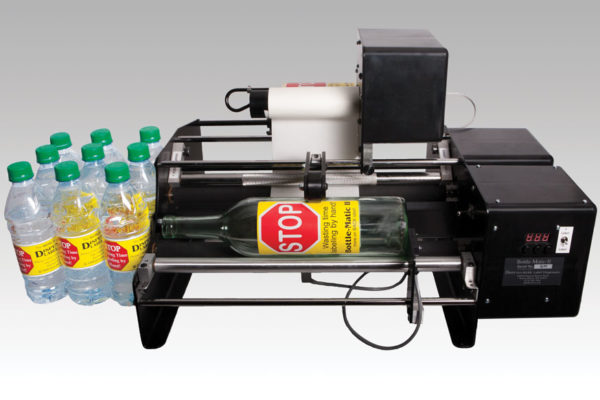

Bottle-Matic-II bottle/cylinder labeler/applicator

Bottle-Matic-II bottle labelers enable the user to label all kinds of cylindrical objects front and back by simply setting the desired spacing using the index knob. Then insert the container and pressing a foot switch. Once the foot switch is activated the label is applied, then the machine inserts a gap that was set with the index knob, and immediately applies the 2nd label. Most wine bottles are labeled in less than 5 seconds! This allows the user to quickly remove the bottle and insert another to start the procedure again. Once a rhythm is established bottles are labeled VERY quickly. Loading is a “snap”, just feed the labels between the dispensing tables then through the patented feed-roll assembly and “snap” into place.

PDF-Brochure-button

  • DON’T BE FOOLED! Know your getting the REAL DEAL with Bottle-Matic-II, we designed the machine from the ground up! (Not imported, or knock-off)
  • SATISFACTION GUARANTEED. If we cannot make you happy within 21 days, send it back. *1.
  • label objects from .5″ to 10″ diameter. From a Test Tube to a 1.5 gallon bottle
  • Gap adjustment is quick and easy, turn the knob to the desired gap in inches to 100th of an inch.
  • ACCURACTE! Can hold repetitive gap spacing to 1/16″ or less on most containers. Holds 1/64th” side-side accuracy on most containers.
  • Label cylinders to 15″ length (or longer if the item has a neck)
  • Able to handle most tapered containers by simply adjusting the idle roller position.
  • Labels over 1000 pcs per hour with average dexterity. (more if you have a fast employee)
  • Side frames: Laser-Cut from the drawing quality steel then formed, countersunk, de burred, and inspected one at a time at our facility.
  • Dispensing Tables: formed out of 6061-T6 Aluminum. The peel edge is hand milled to spec within .001″ using a special hand-made cutting tool to get that perfect peeling edge needed to dispense labels without tearing the backing paper. (35 years of perfecting the peeling action)
  • Dispensing tables are POLISHED with ultra-fine polishing compound so paper flows freely around the plate.
  • The Bottle-Matic-II uses DUAL motors that are shaded pole AC, and made in the USA to our specifications. (No CHEAP 12v motors here!)
  • Costs are a fraction of similar machines of the same build quality.
  • Micro-Switch activated, will work on all kinds of labels.
  • We manufacture the Bottle-Matic, so we are able to do any modifications necessary for those hard to label containers, but labels most containers without modification
